C203 wiring to blower motor



Post new topic   Reply to topic     Forum Index -> Grand Cherokee Forum
View previous topic :: View next topic
Author Message
DaveHickey
Member


Joined: 25 Oct 2008

PostPosted: Sun Oct 26, 2008 4:07 pm    Post subject: C203 wiring to blower motor Reply with quote

Problem: All fan speeds not working. Found blower motor (ATC) resistor melted at connector. Replaced resistor and connector. Still not working. Pops the 40 amp fuse no matter what I do.

Was told by Jeep service tech that there is a short to ground in the C203 wiring. They wanted $500 to fix. No thank you, I said.

I now have the dash off, but still can't get to the wiring, which is directly behind the HVAC housing, and taped with a bunch of other wires. I have the FSM, and am looking at how to remove the HVAC assembly, but I really don't want to!

I'm already past my point of confidence in being able to put it all back together. I'd rather not remove the HVAC housing. Any helpful hints?

Thanks
Back to top
View user's profile Send private message
RussellRowell
Member


Joined: 09 Feb 2006
Location: Jacksonville Florida

PostPosted: Mon Oct 27, 2008 5:57 pm    Post subject: Reply with quote

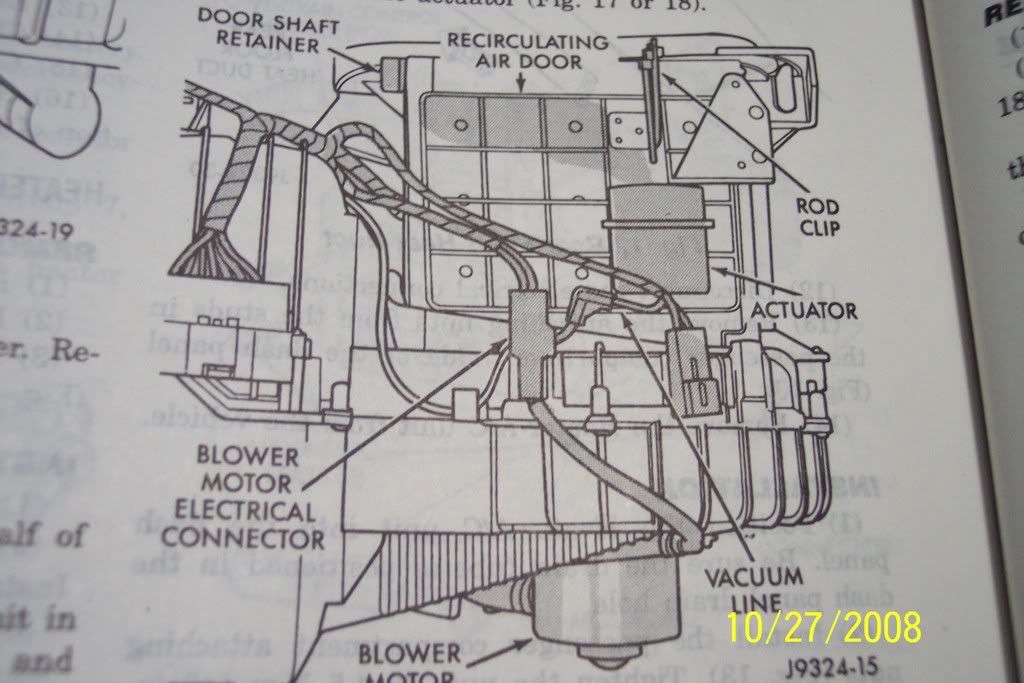

Dave, there are 2 nuts on the engine side. One is behind the PCM (behind your coolant reservoir) and the other is to the right of the a/c coolant lines on the firewall. There is 1 on the inside. You could probably loosen the a/c enough to get your hand back there but getting the connector plug apart might be difficult. Below in the picture is the back side of the a/c unit. You can see where the connector is. This info is for a 94 though. GL








_________________
1994 w327k
Cold Air K&N / Taurus Elec Fan / O Yellow Top
Dino Max Turbo / Hi Flo Cat / Poly Bush Kit
NP249 / 5.2 / MB Motoring Rims/ 1500 watts
